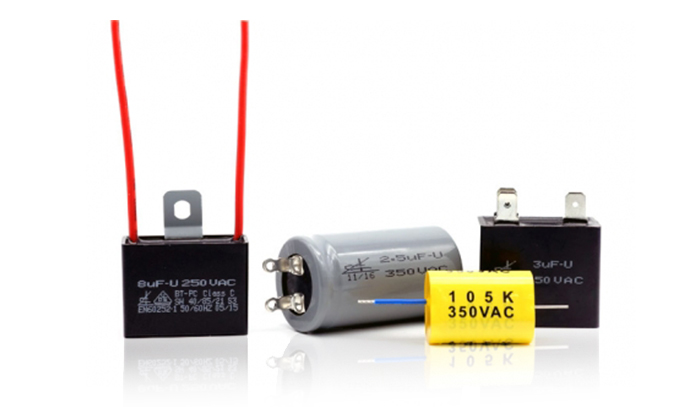

Stand & Wall Fan-tw

https://www.lung-chen.com/web/image/product.template/3/image_1920?unique=67b3513

Fan capacitor An electronic component used in electric fans. They are commonly used to start and run the motor of an AC fan. When the fan starts, the capacitor stores charge and then releases it to start the motor and maintain the proper phase relationship to ensure the fan can operate properly. Overall, fan capacitors play an important role in the operation of the fan, helping to provide the power needed to start and operate.


    此組合不存在。

    Application

    It was founded in 1989. With more than 20 years’ experience of producing capacitors, it is one of the few companies in Taiwan which can produce ceiling fan capacitors professionally. It is also famous for manufacturing various metallized film capacitors for home electronics and industrial machines, including of motors, ceiling fans, fans, air conditioners, refrigerators, washing machines, ventilators, pumps, electrical tools, lights, power savers and other appliances. Welcome to our website, LUNGCHEN Film Capacitor Manufacturer glad to be at your service!

    Stand and Pedestal Fan

    Wall Fan

    Ceiling Fan

    Stand and Pedestal Fan

    Specification

    Model Fan Capacitors - Stand & Wall Fan
    額定電容值範圍 1.0μ~30μF
    額定電壓值範圍
    160VAC~600VAC
    容量容許誤差
    ±5%(J), ±10%(K), +10/-5%(U),Other tolerance upon request
    容許之操作溫度
    Min. temperatures:-40℃, -25℃
    Max. temperatures:+70℃, +85℃
    耐電壓
    Between terminals:1.75×RV for 10Sec.  No flashover or permanent breakdown shall occur, but self-healing are allowed.
    Between terminals and case:2RV+1KV(2000V Min.) for 2~60Sec.  During this test, no dielectric breakdown or flashover shall occur.
    Insulation Resistance (Rins)
    Measured between terminals at 25±5℃, after 1 minute of electrification at 100VDC
    Rins≧1000MΩ.μF
    介質損失率
    tanδ, measured at 25±5℃, 1KHZ
    Cr>1μF:0.8%Max.
    耐用度測試

    Test conditions
    Temperature:The maximum permissible capacitor operating temp
    Voltage applied:1.25RV continuous
    Performance
    During this test, no permanent breakdown, interruption or flashover shall occur.
    Capacitance change(△C/C):≦±3%
    濕度-溫度測試

    Test conditions
    Temperature:40±2℃
    Relative humidity:90~95%
    Test duration:1000±24h
    Performance
    Capacitance change(△C/C):≦±0.5%
