Stand & Wall Fan

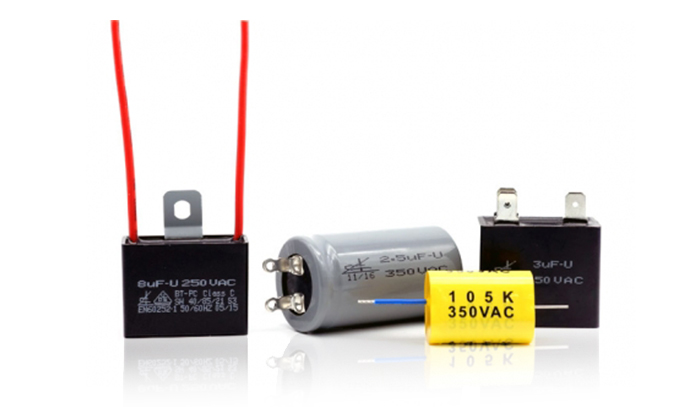

https://www.lung-chen.com/web/image/product.template/3/image_1920?unique=67b3513

Fan capacitor An electronic component used in electric fans. They are commonly used to start and run the motor of an AC fan. When the fan starts, the capacitor stores charge and then releases it to start the motor and maintain the proper phase relationship to ensure the fan can operate properly. Overall, fan capacitors play an important role in the operation of the fan, helping to provide the power needed to start and operate.


    This combination does not exist.

    Application

    It was founded in 1989. With more than 20 years’ experience of producing capacitors, it is one of the few companies in Taiwan which can produce ceiling fan capacitors professionally. It is also famous for manufacturing various metallized film capacitors for home electronics and industrial machines, including of motors, ceiling fans, fans, air conditioners, refrigerators, washing machines, ventilators, pumps, electrical tools, lights, power savers and other appliances. Welcome to our website, LUNGCHEN Film Capacitor Manufacturer glad to be at your service!

    Stand and Pedestal Fan

    Wall Fan

    Ceiling Fan

    Stand and Pedestal Fan

    Specification

    Model Fan Capacitors - Stand & Wall Fan
    Rated Capacitance (Cr) 1.0μ～30μF
    Rated Voltage (RV)
    		 160VAC～600VAC
    Capacitance tolerance (at 1KHZ)
    		 ±5%(J), ±10%(K), +10/-5%(U),Other tolerance upon request
    Operating temperature range
    		 Min. temperatures：-40℃, -25℃
    Max. temperatures：+70℃, +85℃
    Withstand voltage (at 25±5℃)
    		 Between terminals：1.75×RV for 10Sec.  No flashover or permanent breakdown shall occur, but self-healing are allowed.
    Between terminals and case：2RV+1KV(2000V Min.) for 2～60Sec.  During this test, no dielectric breakdown or flashover shall occur.
    Insulation Resistance (Rins)
    		 Measured between terminals at 25±5℃, after 1 minute of electrification at 100VDC
    Rins≧1000MΩ.μF
    Dissipation Factor (DF)
    		 tanδ, measured at 25±5℃, 1KHZ
    Cr＞1μF：0.8%Max.
    Endurance Test
    Test conditions
    		 Temperature：The maximum permissible capacitor operating temp
    Voltage applied：1.25RV continuous
    Performance
    		 During this test, no permanent breakdown, interruption or flashover shall occur.
    Capacitance change(△C/C)：≦±3%
    Damp-heat Test
    Test conditions
    		 Temperature：40±2℃
    Relative humidity：90~95%
    Test duration：1000±24h
    Performance
    		 Capacitance change(△C/C)：≦±0.5%
